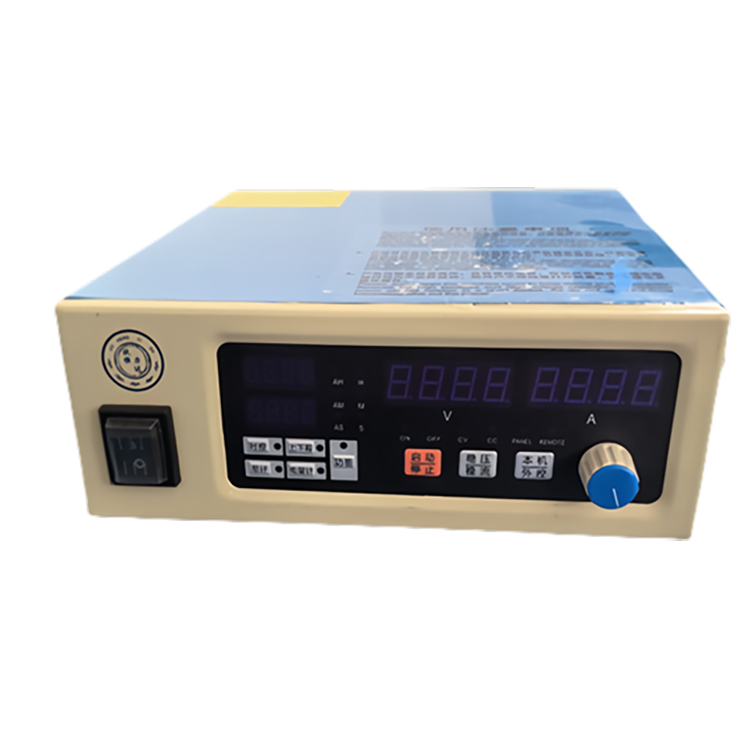

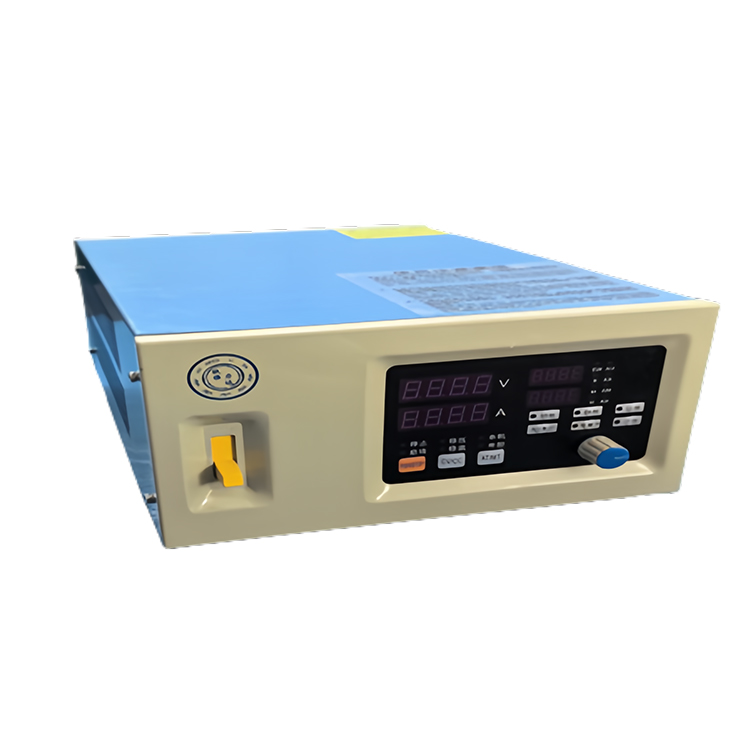

【Intelligent Type for Continuous Plating (IVT Series)】：

输出电压（Output Voltage）： 0V - 12V
额定输出电流（Rated Output Current）： 0A - 200A
输入电压范围（Input Voltage Range）：
  单相（Single-phase）：220VAC ±20%，50Hz
  三相（Three-phase）：380VAC ±20%，50Hz
输出电流稳定度（Output Current Stability）： ≤ 2%
输出电压稳定度（Output Voltage Stability）： 1%
开关频率（Switching Frequency）： 37kHz ± 3kHz
功率因数（Power Factor）： ≥ 0.9
效率（Efficiency）： ≥ 83% - 92%
体积尺寸（Dimensions in mm）： 410 × 300 × 185

Application Range:
Works in conjunction with PLC to achieve full-line computer management.

Product Features:

1. Real-time monitoring of AC input status, output voltage, current values, ambient temperature, ampere-hour calculation and accumulation, and three-stage time control functions.

2. Automatically detects if the voltage exceeds the limit and issues a warning signal. Measurement values can be displayed on the monitoring center and automatically generate reports.

3. Multiple waveform output options to meet the requirements of different plating types and process testing.

4. RS-485/422 high-speed communication interface for centralized monitoring of power supply operation.

5. Analog signal input and output interfaces for easy connection with PLC.
